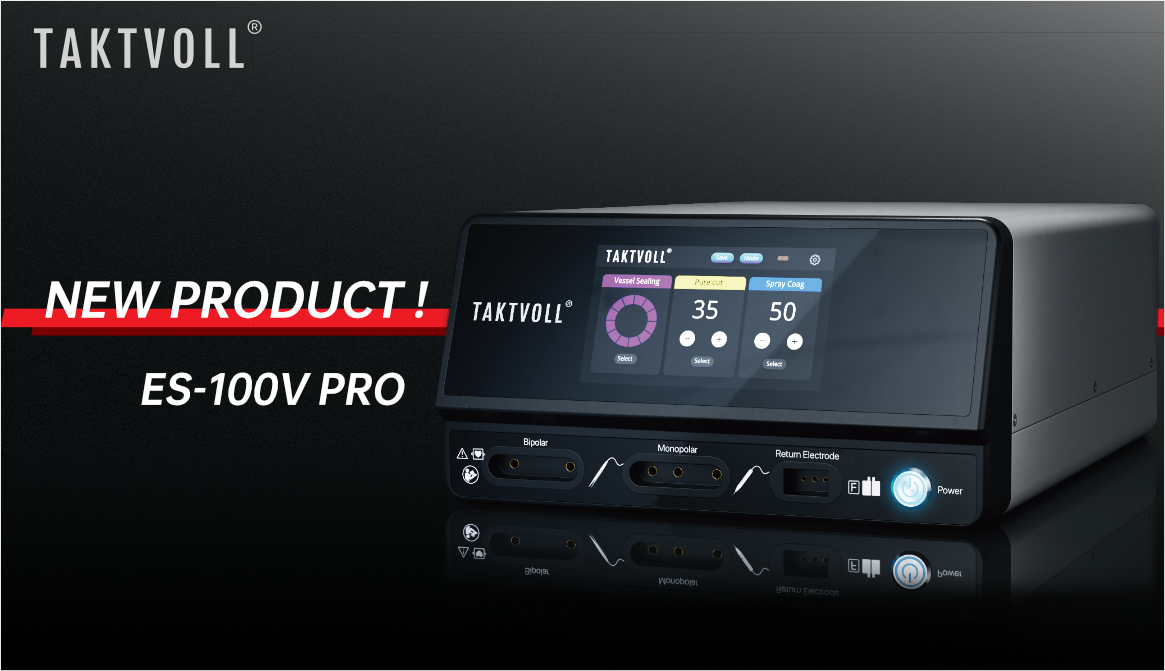

ES-100V Pro LCD Vessel Sealing System
Features
7 working modes-including 5 monopolar working modes, and 2 bipolar working modes:
3 Monopolar Cut modes: Pure Cut, Blend 1/2
2 Monopolar Coag modes: Spray, Forced
2 Bipolar modes: Vessel Sealing, Standard
Large blood vessel sealing function-sealing vessels up to 7 mm.
CQM Contact Quality Monitoring System- Automatically monitors the quality of contact between the electrosurgical pad and the patient in real time. If the contact quality is lower than the set value, there will be a sound and light alarm and cut off the power output to ensure safety.
Both electrosurgical pens and foot switch control
Memory function-can storage recently mode, power, and other parameters and can be quickly recalled
Quick adjustment of power and volume
Cut and Coag in an Intermittent Manner- Coag is also performed during the cutting process to prevent excessive bleeding during the procedure.
Color touch screen operation panel-flexible and easy to operate
Chord vocals-Making the operation process more comfortable
Key Specifications
|
Mode |
Max Output Power(W) |
Load impedance (Ω) |
Modulation Frequency (kHz) |
Max Output Voltage (V) |
Crest Factor |
||
|
Monopolar |
Cut |
Pure Cut |
100 |
500 | -- | 1300 | 1.8 |
|
Blend 1 |
100 |
500 | 20 | 1400 | 2.0 | ||
|
Blend 2 |
100 |
500 | 20 | 1300 | 2.0 | ||
|
Coag |
Spray |
90 |
500 | 12-24 | 4800 | 6.3 | |
|
Forced |
60 |
500 | 25 | 4800 | 6.2 | ||
| Bipolar |
Vessel Sealing |
100 |
100 | 20 | 700 | 1.9 | |
|
Standard |
60 | 100 | 20 | 700 | 1.9 | ||
Key Specifications
|
Mode |
Max Output Power(W) |
Load impedance (Ω) |
Modulation Frequency (kHz) |
Max Output Voltage (V) |
Crest Factor |
||
|
Monopolar |
Cut |
Pure Cut |
100 |
500 | -- | 1300 | 1.8 |
|
Blend 1 |
100 |
500 | 20 | 1400 | 2.0 | ||
|
Blend 2 |
100 |
500 | 20 | 1300 | 2.0 | ||
|
Coag |
Spray |
90 |
500 | 12-24 | 4800 | 6.3 | |
|
Forced |
60 |
500 | 25 | 4800 | 6.2 | ||
| Bipolar |
Vessel Sealing |
100 |
100 | 20 | 700 | 1.9 | |
|
Standard |
60 | 100 | 20 | 700 | 1.9 | ||
Accessories
|
Product Name |
Product Number |
| vessel sealing instrument with 10mm straight tip | VS1837 |
| vessel sealing instrument with 10mm curved tip | VS1937 |
| Electrosurgical Vessel Sealing Scissors | VS1212 |
